Products Position: Home >> Products > Metal Push Button Switch
Series

FT8QA
Model No.

B1
Product

Push Button Switch
Mounting Hole Size

Φ8mm
Head Shape

Ball head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

1A 24VAC / 1A 24VDC
Protection Grade

IP65
Series

FT8QA

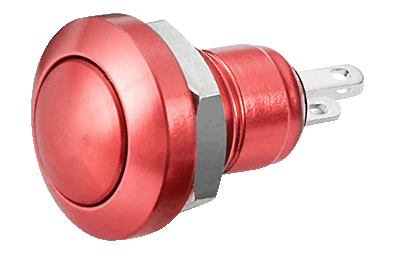

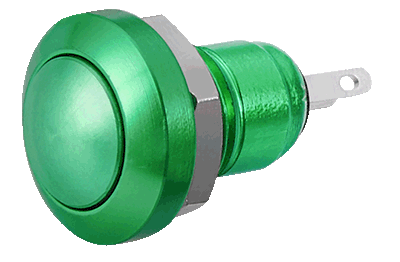

Model No.

B1A(R)
Product

Push Button
Mounting Hole Size

Φ8mm
Head Shape

Ball head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

1A 24VAC / 1A 24VDC
Protection Grade

IP65
Series

FT8QA

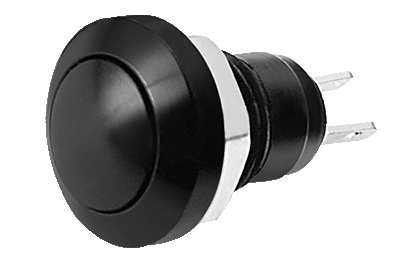

Model No.

8QA-B1A
Product

Push Button
Mounting Hole Size

Φ8mm
Head Shape

Ball head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

1A 24VAC / 1A 24VDC
Protection Grade

IP65
Series

FT12QA
Model No.

D7A
Product

Push Button
Mounting Hole Size

Φ12mm
Head Shape

Ball head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

IP65
Series

FT12QA
Model No.

D8A
Product

Push Button
Mounting Hole Size

Φ12mm
Head Shape

Ball head
Stucture

1NO
Operation

Momentary
Terminal

Screw terminal
Light Type

Non-illuminated
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

IP65
Series

FT12QB
Model No.

D18
Product

Push Button
Mounting Hole Size

Φ12mm
Head Shape

Ball head
Stucture

1NO
Operation

Momentary
Terminal

Screw terminal
Light Type

Non-illuminated
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

Series

FT12QB
Model No.

D21
Product

Push Button
Mounting Hole Size

Φ12mm
Head Shape

Flat head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Ring light
Stucture

2A 250VAC / 2A 36VDC / 3A 250VAC
Protection Grade

IP65
Series

FT12QB
Model No.

D22
Product

Push Button
Mounting Hole Size

Φ12mm
Head Shape

High round head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Ring light
Stucture

2A 250VAC / 2A 36VDC / 3A 250VAC
Protection Grade

IP65
Series

FT12QC
Model No.

D32A
Product

Push Button
Mounting Hole Size

Φ12mm
Head Shape

High round head
Stucture

1NO
Operation

Momentary / Self-locking
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

3A 250VAC / 10A 250VAC
Protection Grade

IP65
Total 166 Records   Page:1/19    Home | Prev | Next | Last     Goto:
Total 166                     Home    Prev      Next    Last   Goto
