FT·D8A

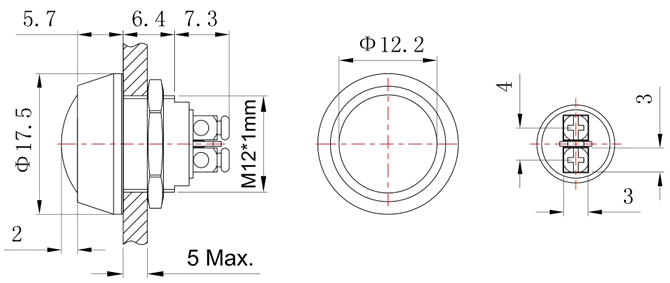

Commodity12mm push button SeriesFT12QA Mounting Hole Size12mm ModelFT12Q-D8A Switch Rating2A 250VAC / 2A 36VDC Head ShapeBall head Non-illuminated Stucture1NO OperationMomentary TerminalScrew terminal Protection GradeIP65 IK10
Lamp Parameters
Rated Voltage2V  3V  5V  6V  12V  24V
36V  48V  110V  220V
Rated Current15mALife50.000 hours
Parameters
Contact Resistance≤50mΩInsulation Resistance≥1000MΩDielectric Strength2000VAC/minEnvironment Temperature-20℃~+55℃Panel Thickness1~10mmNut Torque5~14NmOperating Pressure3~5NOperating Stroke3.0mmMechanical Life1.000.000 timesElectrical Life50.000 times
Material
ButtonStainless steel / Zn-Al alloyBodyStainless steel / Zn-Al alloy / Brass nickel platedContactSilverTermialBrass plating silverBasePBT
