Products Position: Home >> Products > Metal Push Button Switch

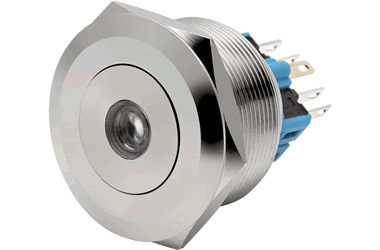

Series

FT30-QA
Model No.

L6/L1Z
Product

Push Button Switch
Mounting Hole Size

Φ30mm
Head Shape

Flat head
Stucture

1NO1NC / 2NO2NC
Operation

Momentary / Self-locking
Terminal

J pin terminal
Light Type

Dot light
Stucture

5A 250VAC
Protection Grade

IP65 / IP67

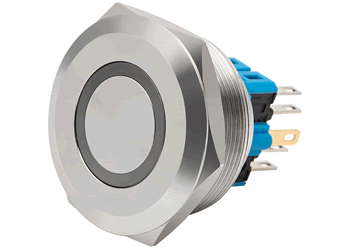

Series

FT30-QA
Model No.

L7/L2Z
Product

Push Button Switch
Mounting Hole Size

Φ30mm
Head Shape

Flat head
Stucture

1NO1NC / 2NO2NC
Operation

Momentary / Self-locking
Terminal

J pin terminal
Light Type

Ring light
Stucture

5A 250VAC
Protection Grade

IP65 / IP67

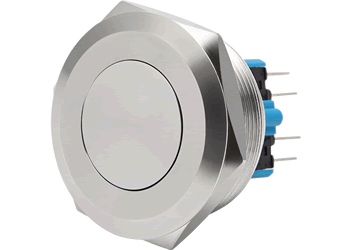

Series

FT30-QA
Model No.

L8/L3Z
Product

Push Button Switch
Mounting Hole Size

Φ30mm
Head Shape

Flat head
Stucture

1NO1NC / 2NO2NC
Operation

Momentary / Self-locking
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

5A 250VAC
Protection Grade

IP65 / IP67

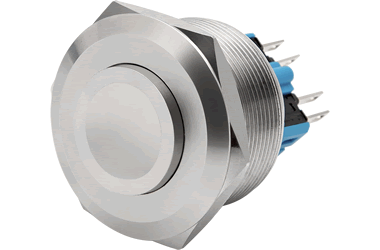

Series

FT30-QA
Model No.

L9/L4Z
Product

Push Button Switch
Mounting Hole Size

Φ30mm
Head Shape

High concave head
Stucture

1NO1NC / 2NO2NC
Operation

Momentary / Self-locking
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

5A 250VAC
Protection Grade

IP65 / IP67
Series

FT30-QA
Model No.

L10/L5Z
Product

Push Button Switch
Mounting Hole Size

Φ30mm
Head Shape

Ball head
Stucture

1NO1NC / 2NO2NC
Operation

Momentary / Self-locking
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

5A 250VAC
Protection Grade

IP65 / IP67
