FT·8Q-B1A(R)
Specification Download
Commodity
8mm push button
Series
FT8QA

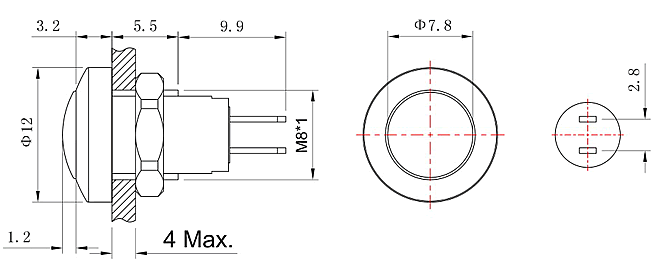

Mounting Hole Size
8mm
Model
FT8Q-B1A(R)
Switch Rating
1A 24VAC / 1A 24VDC
Head Shape
Ball head Non-illuminated
Stucture
1NO
Operation
Momentary
Terminal
J pin terminal
Protection Grade
IP65 IK10
Lamp Parameters
Rated Voltage
2V 3V 5V 6V 12V 24V
36V 48V 110V 220V
Rated Current
15mA
Life
50.000 hours
Parameters
Contact Resistance
≤50mΩ
Insulation Resistance
≥1000MΩ
Dielectric Strength
2000VAC/min
Environment Temperature
-20℃~+55℃
Panel Thickness
1~10mm
Nut Torque
5~14Nm
Operating Pressure
3~5N
Operating Stroke
3.0mm
Mechanical Life
1.000.000 times
Electrical Life
50.000 times
Material
Button
Stainless steel / Zn-Al alloy
Body
Stainless steel / Zn-Al alloy / Brass nickel plated
Contact
Silver
Termial
Brass plating silver
Base
PBT
