Products Position: Home >> Products > Metal Push Button Switch
Flat head. Momentary. Non-illuminated. J pin terminal
Series

FT16-QA
Model No.

C5
Product

Push Button Switch
Mounting Hole Size

Φ16mm
Head Shape

Flat head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

IP65
High round head. Momentary. Non-illuminated. J pin terminal
Series

FT16-QA
Model No.

C6
Product

Push Button Switch
Mounting Hole Size

Φ16mm
Head Shape

High round head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Non-illuminated
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

IP65
Flat head. Momentary. Dot light. J pin terminal
Series

FT16-QA
Model No.

C7
Product

Push Button Switch
Mounting Hole Size

Φ16mm
Head Shape

Flat head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Dot light
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

IP65

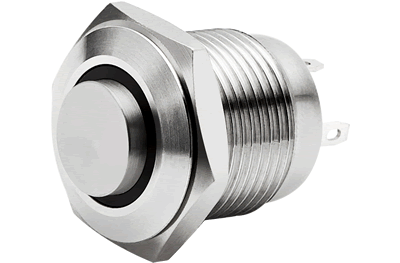

High round head. Momentary. Ring light. J pin terminal
Series

FT16-QA
Model No.

C8
Product

Push Button Switch
Mounting Hole Size

Φ16mm
Head Shape

High round head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Ring light
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

IP65

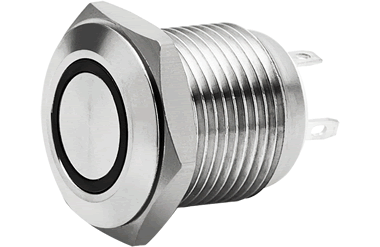

Flat head. Momentary. Ring light. J pin terminal
Series

FT16-QA
Model No.

C9
Product

Push Button Switch
Mounting Hole Size

Φ16mm
Head Shape

Flat head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Ring light
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

IP65

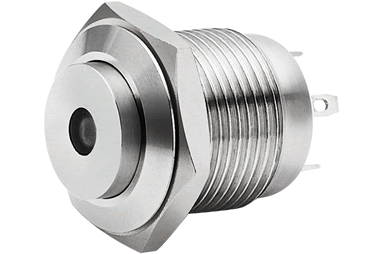

High round head. Momentary. Dot light. J pin terminal
Series

FT16-QA
Model No.

C10
Product

Push Button Switch
Mounting Hole Size

Φ16mm
Head Shape

High round head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Dot light
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

IP65

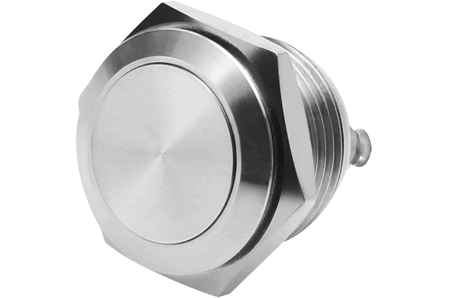

Flat head. Momentary. Screw terminal
Series

FT16-QA
Model No.

C22
Product

Push Button Switch
Mounting Hole Size

Φ16mm
Head Shape

Flat head
Stucture

1NO
Operation

Momentary
Terminal

Screw terminal
Light Type

Non-illuminated
Stucture

2A 36VDC / 2A 250VAC
Protection Grade

IP65

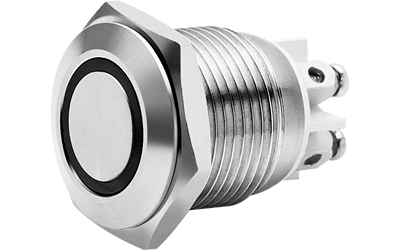

Flat head. Momentary. Ring light. Screw terminal
Series

FT16-QA
Model No.

C25
Product

Push Button Switch
Mounting Hole Size

Φ16mm
Head Shape

Flat head
Stucture

1NO
Operation

Momentary
Terminal

Screw terminal
Light Type

Ring light
Stucture

3A 250VAC / 3A 36VDC
Protection Grade

IP65

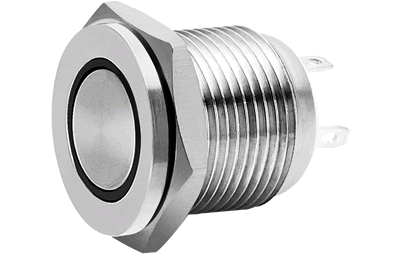

Plane head. Momentary. Ring light. J pin terminal
Series

FT16-QA
Model No.

C27
Product

Push Button Switch
Mounting Hole Size

Φ16mm
Head Shape

Plane head
Stucture

1NO
Operation

Momentary
Terminal

J pin terminal
Light Type

Ring light
Stucture

2A 250VAC / 2A 36VDC
Protection Grade

IP65
