FT·C33主

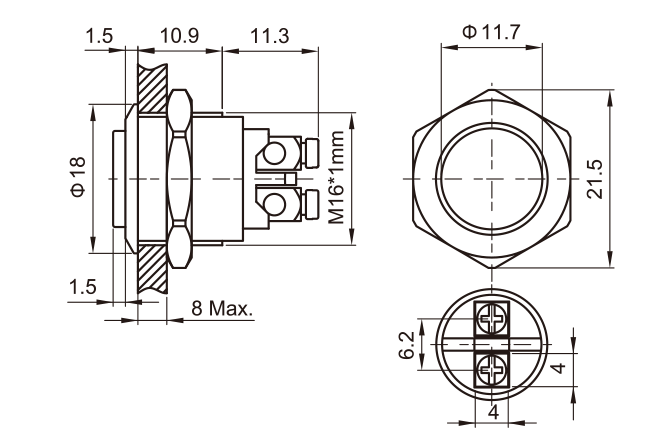

Commodity16mm push button SeriesFT16QA Mounting Hole Size16mm ModelFT16Q-C33 Switch Rating3A 250VAC / 3A 36VDC Head ShapeFlat head Ring light Stucture1NO OperationMomentary TerminalScrew terminal Protection GradeIP65 IK10
Lamp Parameters
Rated Voltage2V  3V  5V  6V  12V  24V
36V  48V  110V  220V
Rated Current15mALife50.000 hours
Parameters
Contact Resistance≤50mΩInsulation Resistance≥1000MΩDielectric Strength2000VAC/minEnvironment Temperature-20℃~+55℃Panel Thickness1~10mmNut Torque5~14NmOperating Pressure3~5NOperating Stroke3.0mmMechanical Life1.000.000 timesElectrical Life50.000 times
Material
ButtonStainless steel / Zn-Al alloyBodyStainless steel / Zn-Al alloy / Brass nickel platedContactSilverTermialBrass plating silverBasePBT
