Flat head. Momentary/Self-locking. Dot light. J pin terminal
Commodity28mm push button switch SeriesFT28-QA Mounting Hole Size28mm ModelFT28Q-G6/G1Z Switch Rating5A 250VAC Head ShapeFlat head Dot light Stucture1NO1NC / 2NO2NC OperationMomentary / Self-locking TerminalJ pin terminal Protection GradeIP65 / IP67 IK10
Lamp Parameters
ColorR . Y . G . B . W
other color . double colorRated Voltage2V  3V  5V  6V  12V  24V
36V  48V  110V  220VRated Current15mALife50.000 hours

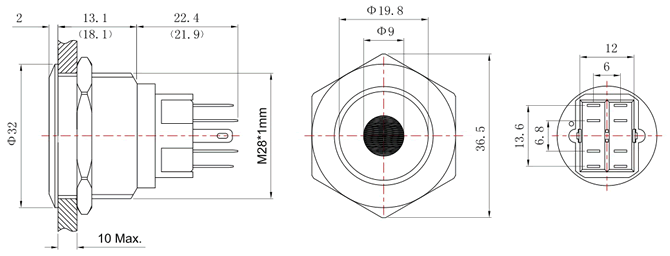

Note: ( ) Brackets are the dimensions of self-locking switches
Parameters
Contact Resistance≤50mΩInsulation Resistance≥1000MΩDielectric Strength2000VAC/minEnvironment Temperature-20℃~+55℃Panel Thickness1~10mmNut Torque5~14NmOperating Pressure3~5NOperating Stroke3.0mmMechanical Life1.000.000 timesElectrical Life50.000 times
Material
ButtonStainless steel / Zn-Al alloyBodyStainless steel / Zn-Al alloy / Brass nickel platedContactSilverTermialBrass plating silverBasePBT
