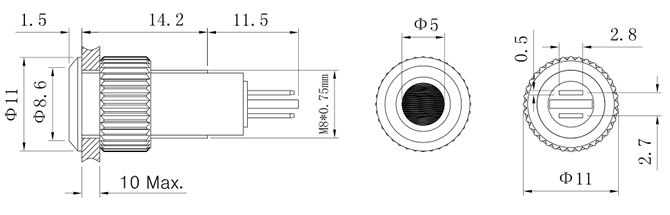

Indicator Light. Flat head. Dot light. J pin terminal
Commodity8mm indicator light SeriesFT-8Z Mounting Hole Size8mm ModelFT8Z-A3 Switch Rating Head ShapeFlat head Dot light Stucture Operation TerminalJ pin terminal Protection GradeIP65 IK10
Lamp Parameters
ColorR . Y . G . B . W
other color . double color
Rated Voltage2V  3V  5V  6V  12V  24V
36V  48V  110V  220V
Rated Current15mALife50.000 hours
Parameters
Contact Resistance≤50mΩInsulation Resistance≥1000MΩDielectric Strength2000VAC/minEnvironment Temperature-20℃~+55℃Panel Thickness1~10mmNut Torque5~14NmOperating Pressure3~5NOperating Stroke3.0mmMechanical Life1.000.000 timesElectrical Life50.000 times
Material
ButtonStainless steel / Zn-Al alloyBodyStainless steel / Zn-Al alloy / Brass nickel platedContactSilverTermialBrass plating silverBasePBT
